Product description

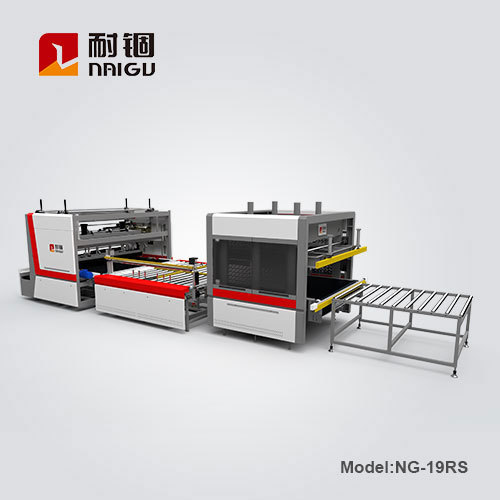

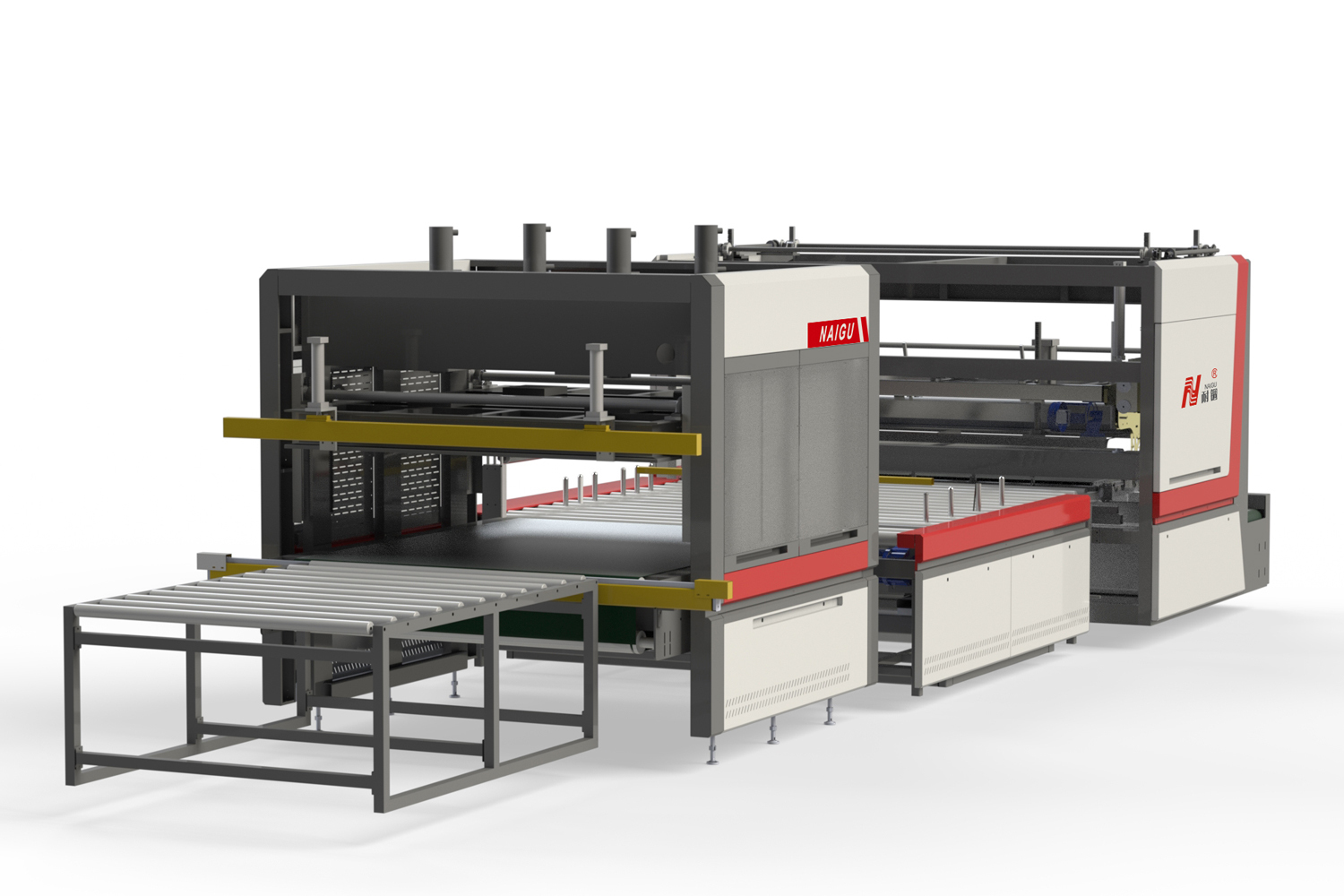

NG-19RS is an automatic mattress compression rolling machine with folding function, which minimizes the shipping, storage and operation costs and maximize the profit and competitiveness.
Technical specification
|
Maximum Mattress Size |
2200x2000 MM |
|
Maximum Mattress Height |
450 MM |
|
Roll diameter range(Adjustable) |
220 MM - 480MM |
|
Maximum Pressure |
60T |
|
Efficiency |
30 Seconds /PCS |
|
Total Power |
33.6 KW |
|
Voltage |
3 Phase AC 380V/50HZ (Customized ) |
|
Suitable Plastic material |
PE Plastic |
|
Air pressure |
0.6 - 0.8 MPA |
|
Net weight |
9000 KG |
|
External Dimension |
L10300 * W3380 * H2550MM |
Product advantages
▶ Greatly reduce volume of the mattresses,save transportation and storage costs.

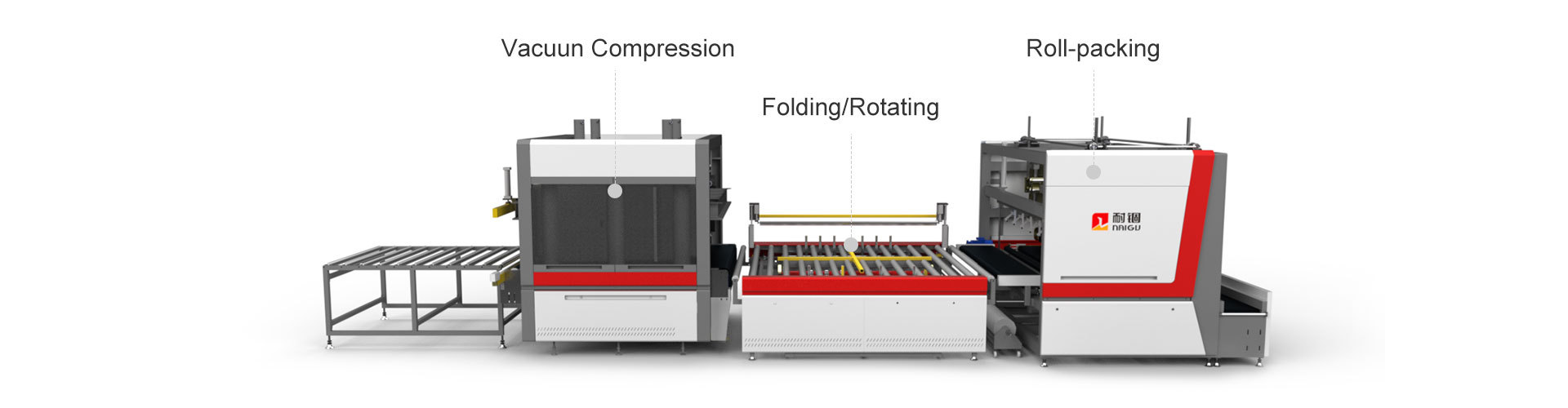

▶ Automatic mattress folding and rotating function.
▶ Save package costs; for the front compress machine used 0.09mm thickness compression bags ,and the last roll packing machine used 0.04mm thickness film.
▶ Stable performance;uses Siemens control system ( PLC , HMI , Inverter ).
▶ Easy to operate; the control panel can be translated into various languages and is equipped with a remote system for easy installation and maintenance.
